Features

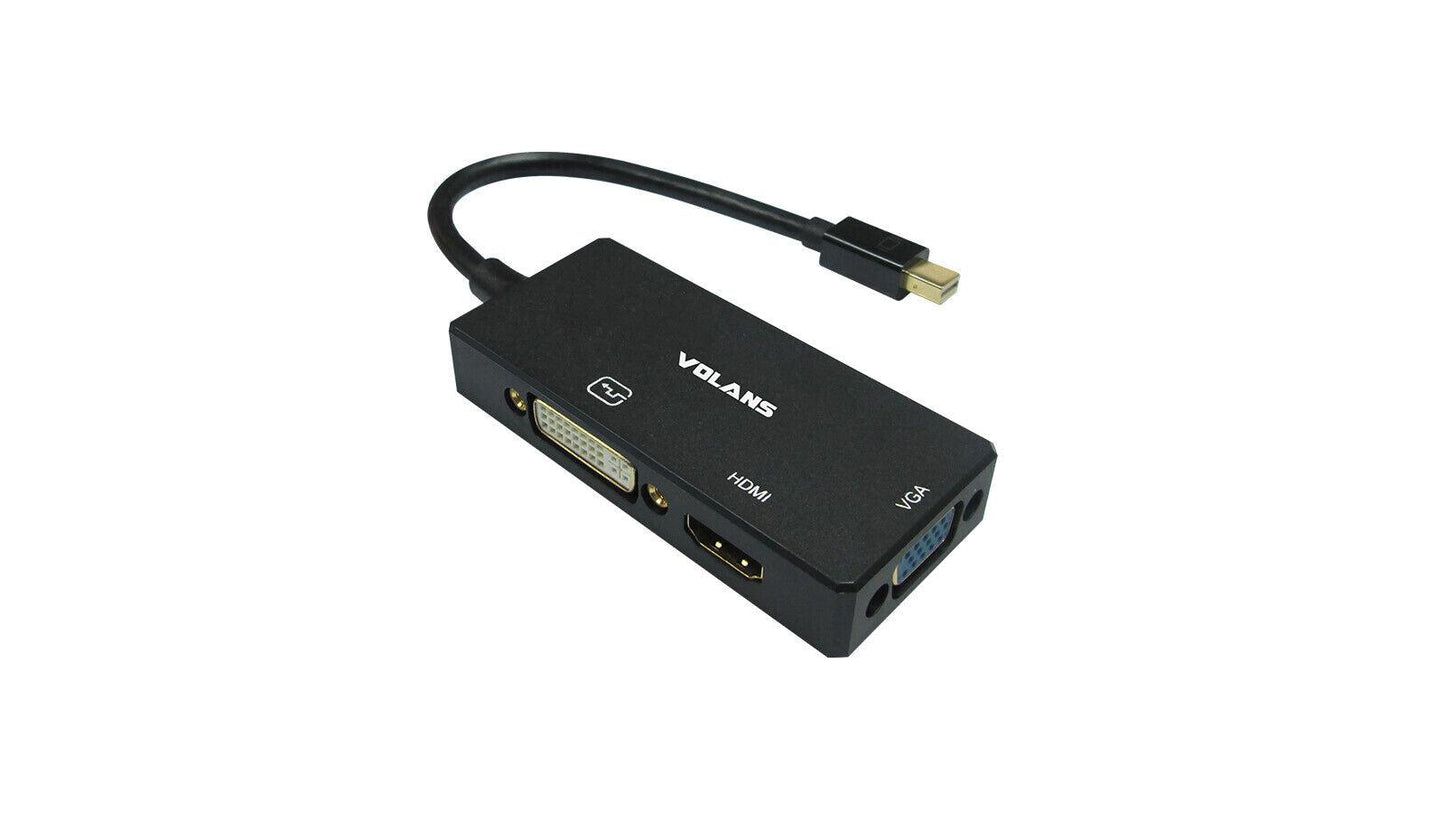

All-in-one video connectivity, with travel in mind

Instead of filling your laptop bag with different converters for different displays, this 3-in-1 adapter gives you all the video outputs you’ll need. With VGA, DVI and HDMI outputs, this adapter lets you connect from your laptop’s Mini DisplayPort port to any boardroom or classroom display, without the inconvenience of carrying a separate adapter for each display type. With support for multiple video outputs and a lightweight, small-footprint design, this adapter is the ideal plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office.

Astonishing picture quality with support for Ultra HD 4K

The HDMI output on this adapter supports Ultra HD 4K resolutions, providing four times the picture quality of high-definition 1080p. The HDMI output is also backward compatible with lower resolutions, such as 1080p and 720p, so the adapter is also perfect for your legacy video equipment. The VGA and DVI outputs also support a high-definition maximum resolution up to 1920 x 1200, so you can still enjoy excellent video quality. The travel adapter is compatible with mDP Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort signal.

Specification

• HARDWARE
  	Adapter Style	Adapters
  	Audio	Yes
  	Converter Type	Travel A/V Adapters
  	Output Signal	HDMI
  		DVI-D (DVI Digital)
  		VGA
  PERFORMANCE
  	Audio Specifications	HDMI output – 7.1 surround sound
  	General Specifications	Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function.
  	Maximum Analog Resolutions	1920 x 1200
  	Maximum Digital Resolutions	3840 x 2160
  	Supported Resolutions	HDMI output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720 DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720
  	Video Revision	DisplayPort 1.2
  	Wide Screen Supported	Yes
  CONNECTOR(S)
  	Connector A	1 – Mini-DisplayPort (20 pin) Male Input
  	Connector B	1 – HDMI (19 pin) Female Output
  		1 – VGA (15 pin, High Density D-Sub) Female Output
  		1 – DVI-D (25 pin) Female Output
  SPECIAL NOTES / REQUIREMENTS
  	Note	The HDMI port is a passive port. The DVI-D is a passive port. The VGA port is an active port.
  ENVIRONMENTAL
  	Humidity	40%-50%RH
  	Operating Temperature	0°C to 70°C (32°F to 158°F)
  	Storage Temperature	-10°C to 80°C (14°F to 176°F)
  WHAT’S IN THE BOX
  	Included in Package	1 – VL-MDPHDV-4K 2 – User Manuel
